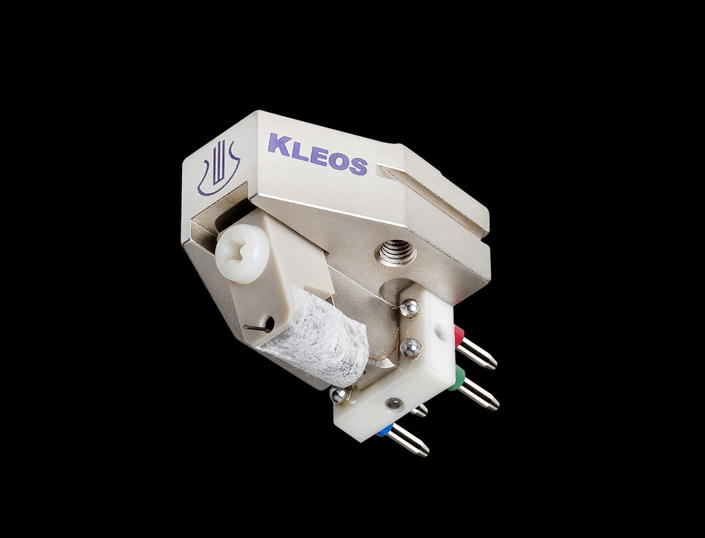

Lyra Kleos SL
Lieferzeit 2 bis 5 Tage
3490.00 € inkl. 19.00 % MwSt., zzgl. Versand
Artikel-Nr.: TMC12806
Lyra Kleos SL
Spezielle Version mit sehr geringer Ausgangsspannung 0,25 mV und Impedanz, resultierend aus einer verringerten Anzahl der Spulenwicklungen.
Special Limited
Sofort lieferbar!
Type: Medium weight, medium compliance, low-impedance moving coil cartridge
Frequency range: 10Hz~50kHz
Channel separation: 35dB or better at 1kHz
Cantilever system: Solid boron rod with Lyra - designed long-footprint line-contact stylus (3¼mx70¼m, slot-mounted) and one-point suspension, directly mounted to cartridge body
Coil: 6 -N high-purity copper, 2.7ohms internal impedance
Output voltage: 0.25mV@5cm/sec. (CBS test record, other test records may alter results)
Compliance: Approx. 12—10 cm/dyne at 100Hz
Vertical tracking angle: 20 degrees
Cartridge body: One-piece machining from solid 7075 alloy billet, with focussed-pressure headshell contact area, and resonance-controlling mechanism
Cartridge weight (without stylus cover): 8.8g
Recommended tracking force: 1.7~1.8g (1.75g preferred)
Recommended load directly into MC phono input: 86.6ohms~47kohm (determine by listening, or follow detailed guidelines above)
Recommended load via step-up transformer: 5~15ohm (step-up transformer's output must be connected to 47kohm MM-level RIAA input)
Recommended tonearm: High-quality pivoted or linear (tangential) tone arm with precision bearing(s), adjustable anti-skating force, preferably VTA adjustment
